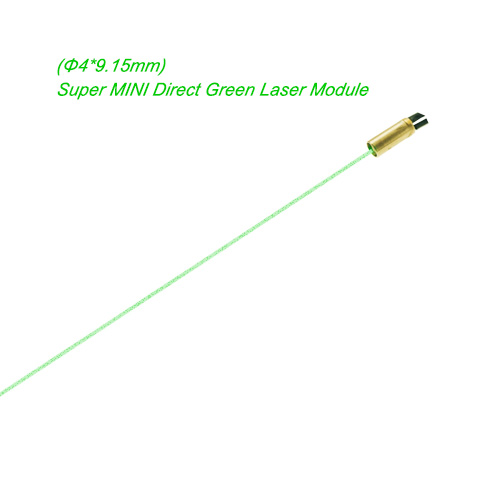

MDF520-1-3-4×9.15

Main Specifications:

  • Model number: MDF520-1-3-4×9.15
  • Available wavelength: 520nm(520±10nm)
  • Size: Φ4×9.15mm with outside driver board: 7 x18mm
  • Output power: 1mW
  • Output aperture: Φ2mm (with PD)
  • Operating voltage: DC 3V(2.2-4.8V)
  • Modulation frequency: avaliable
  • Port: avaliable
  • Operating current: ≤30mA @ 25℃ (DC 3V)
  • Beam character: elliptical
  • Elliptic proportion: 1:1.5
  • Beam divergence: 1.2mrad (full angle)
  • Beam size: ≤Φ12mm within 10m; ≤Φ36mm within 30m
  • Optics: aspheric optical glass lens
  • Beam output model: Modulation output
  • Operating temperature: -10 ºC---+60 ºC
  • Output stability:  ≤ ±3% at  -10 ºC---+50 ºC
  • Life time: ≥6000 hours one year warranty
  • Laser safety classification: class 2
